Product Description:
The Genx 12kW Split-Phase Off-Grid Hybrid Inverter is a high-performance pure sine wave inverter designed for reliable off-grid and hybrid solar applications. Built to support split-phase 120V/240v output, this inverter seamlessly integrates photovoltaic input, battery storage, and generator or grid charging into one intelligent power solution, all while being UL1741 certified.
Featuring advanced MPPT technology (up to 99.9% efficiency), lithium battery communication, UPS bypass functionality, and parallel scalability up to six units, this inverter delivers flexible, dependable power for residential homes, RV systems, agricultural operations, and light industrial use.
Key Specifications:
- UL1741 Certified
- Rated Power Output:
- 12,000W split-phase (120V/240V)
- 7,200W single-phase
- Peak Power: 18,000W (split-phase or single-phase)
- Output Waveform: Pure sine wave
- Battery Compatibility: Lithium-ion, lead-acid, or user-defined batteries
- Nominal Battery Voltage: 48VDC
- Battery Voltage Range: 40-60VDC
- PV Input: Dual MPPT (2 x 6000W)
- MPPT Efficiency: Up to 99.9%
- Maximum PV Input Current: 2 x 22A
- Maximum Charging Current:
- PV: 200A
- AC:160A
Download Specification below

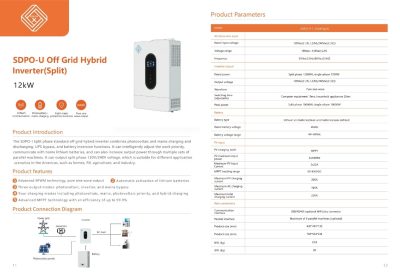

Datasheet-off grid solar inverteGXO48U12
