Genx Solar System Bundle

This all-in-one solar system bundle is designed for homeowners, small commercial properties, and off-grid or hybrid applications looking for dependable solar production paired with robust battery storage. Every major component needed to generate, store, and safely manage solar power is included, making installation simpler and more cost-effective.

What’s Included:

1 x 12,000 W Solar Inverter

• High-capacity inverter designed to handle residential or light commercial loads
• Supports efficient DC-to-AC conversion
• Ideal for grid-tied, hybrid, or backup power configurations (depending on system design)
• Rated Power Output:
  • 12,000W split-phase (120V/240V)
  • 7,200W single-phase (120V)
• Peak Power: 18,000W (split-phase or single-phase)
• Output Waveform: Pure sine wave
• Battery Compatibility: Lithium-ion, lead-acid, or user-defined batteries
• Nominal Battery Voltage: 48V / 51.2V
• Battery Voltage Range: 40-60VDC
• PV Input: Dual MPPT (2 x 6000W)
• MPPT Efficiency: Up to 99.9%
• Maximum PV Input Current: 2 x 22A
• Maximum Charging Current:
  • PV: 200A
  • AC:160A

1 x 16KwH Solar Battery

• Battery Material: Grade A LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 51.2V
• Capacity: 314Ah
• Cycle Life: >6000 cycles at 80% DOD
• IP65 Rating
• Built-In Protection: Intelligent BMS with monitoring, control, and safety management

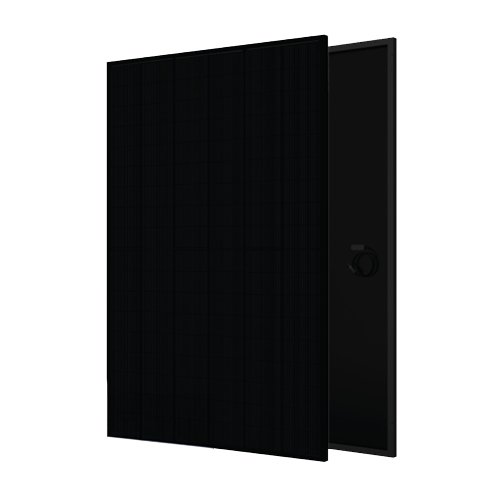

10 x CW Energy 410W Solar Panels (4.1 KW DC total)

• 410W High Power Output
• Half-Cut PERC Cell Technology – improved efficiency, reduced losses, and better shade tolerance
• Full Black Design – Black frame, black backsheet, and black cells for a premium aesthetic
• Low-irradiance Performance – Reliable output in cloudy or low-light conditions
• High durability
• Self-cleaning & Anti-Reflection Glass
• Positive Power Tolerance (0 ~ +5W) – Guaranteed minimum rated output or better

1 x DC Disconnection Switch

• Essential safety component for system protection
• Allows safe isolation of the solar array during maintenance or emergencies
• Helps meet electrical and code compliance requirements

1 x 50 ft PV Solar Cable

• Designed for long-term reliability in harsh conditions
• Suitable for panel-to-inverter and balance-of-system connections
